Timer para la cocina (CIR10656S)

Written by: Newton C. Braga
Category: Banco de circuitos

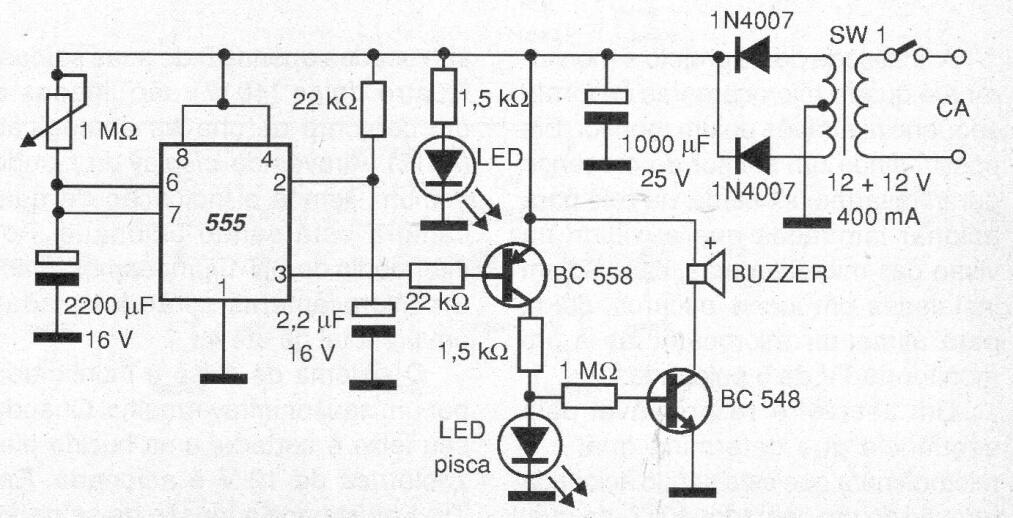

    Este circuito dispara una señal de aviso después de finalizar la temporización pre programada. A través del potenciómetro se debe ajustar el tiempo de temporización. Se enciende SW1 y el LED se enciende, indicando que el circuito está en funcionamiento. Después del tiempo elegido en la pre-programación habrá el disparo de la señal sonora que suena 3 veces por segundo controlado por un LED parpadeante. Para desactivar el circuito basta con que SW1 se apague. El tiempo se puede ajustar entre 1 minuto y aproximadamente 1 hora. Se puede montar uno mostrado alrededor del potenciómetro para facilitar el ajuste del tiempo. El bocina puede ser un buzzer piezoeléctrico Hikari B7S23120 de sonido continuo.
