Biestable NAND 4011 (CIR9795S)

Written by: Newton C. Braga
Category: Banco de circuitos

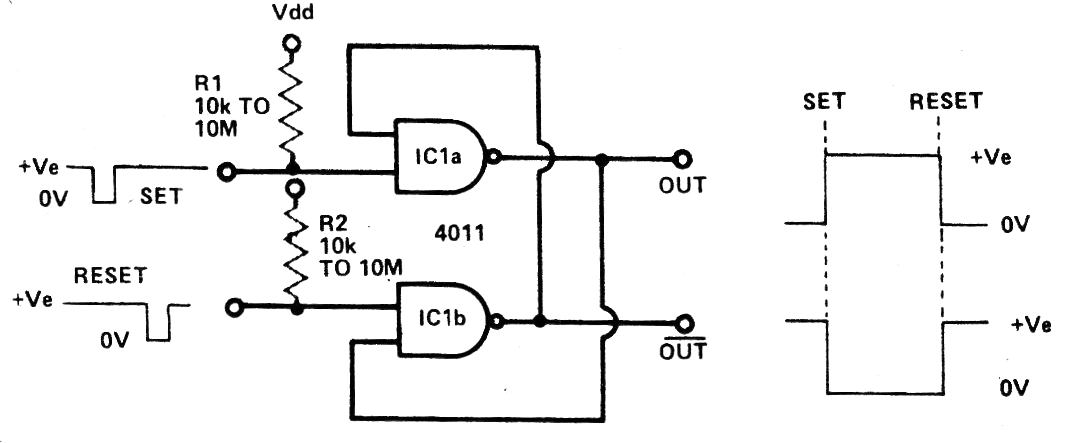

Si bien es una configuración común todavía hoy, este circuito se ha retirado de una publicación antigua. El circuito muestra cómo debemos conectar las puertas NAND de un 4011 para obtener un flip-flop o biestable disparado por señales externas CMOS



Biestable NAND 4011
Biestable NAND 4011 | Haga click en la imagen para ampliar |
