Mini Órgano Electrónico (CIR9123S)

Written by: Newton C. Braga
Category: Banco de circuitos

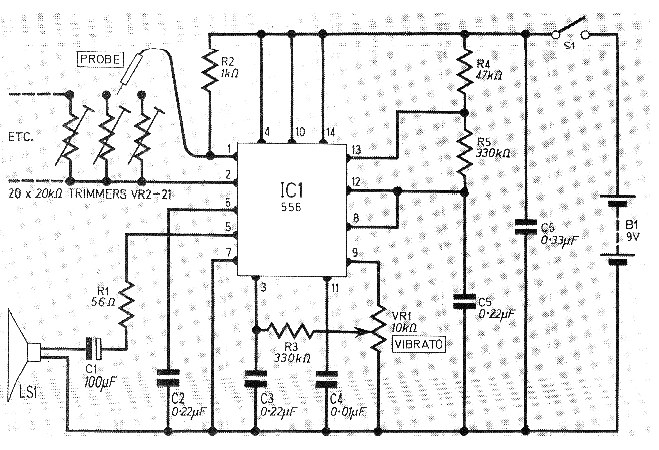

Este circuito fue obtenido en una revista inglesa de 1977. Se trata de un instrumento musical de juguete que utiliza un doble 555, es decir, un circuito integrado 556. El circuito es actual y el teclado puede ser hecho con chapas de metal que deben ser tocadas por una punta de prueba. El circuito también funciona con 6 V y el ajuste de vibrato se realiza en VR1.
