Timer Neón (CIR9160S)

Written by: Newton C. Braga
Category: Banco de circuitos

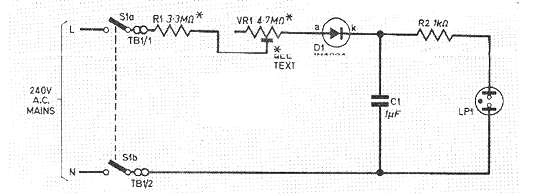

Este circuito fue obtenido una revista inglesa de 1981. La revista ya no existe, pero el circuito puede ser montado con facilidad, pues los componentes son comunes. El temporizador para algunos minutos utiliza una lámpara de neón que se apaga después del tiempo programado.
