Control de potencia con SCR 2 (CIR9215S)

Written by: Newton C. Braga
Category: Banco de circuitos

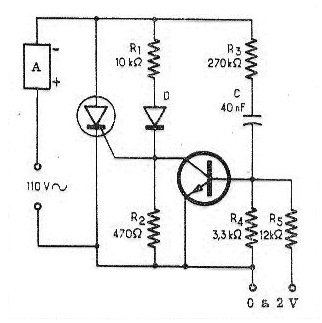

Este circuito de control de potencia diferente con SCR fue obtenido en una revista de 1967. El SCR puede ser el TIC106 y el transistor el BC135. El control se realiza por una tensión de 6 a 12 V aplicada a la entrada. El diodo puede ser el 1N4004.
