Shield para transmisión digital (CIR9366S)

Written by: Newton C. Braga
Category: Banco de circuitos

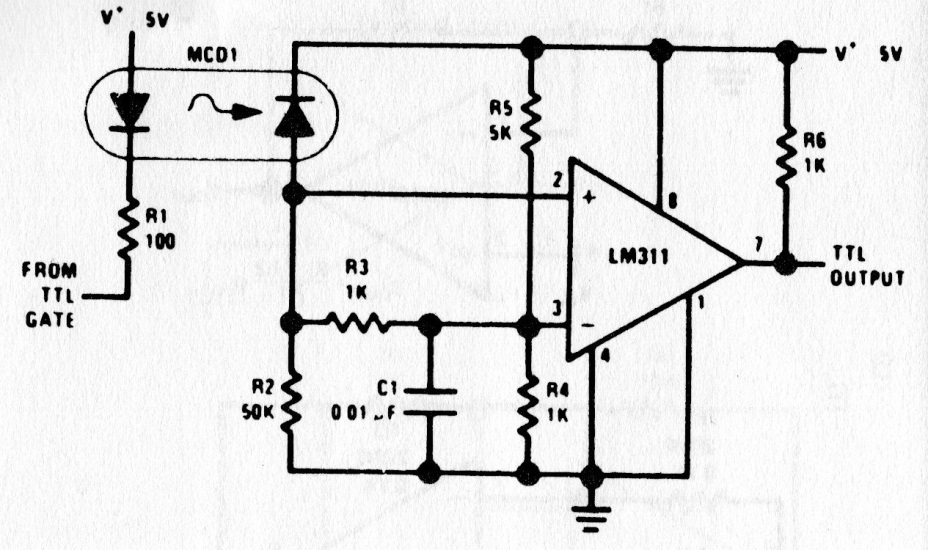

     Este circuito fue encontrado en un manual técnico americano de los años 80. El LM111 es un amplificador operacional poco común actualmente, pero la configuración puede ser implementada con operacionales más modernos. El circuito tiene salida TTL.




| Haga click en la imagen para ampliar |
