Prueba Solar de Transistores (CIR9494S)

Written by: Newton C. Braga
Category: Banco de circuitos

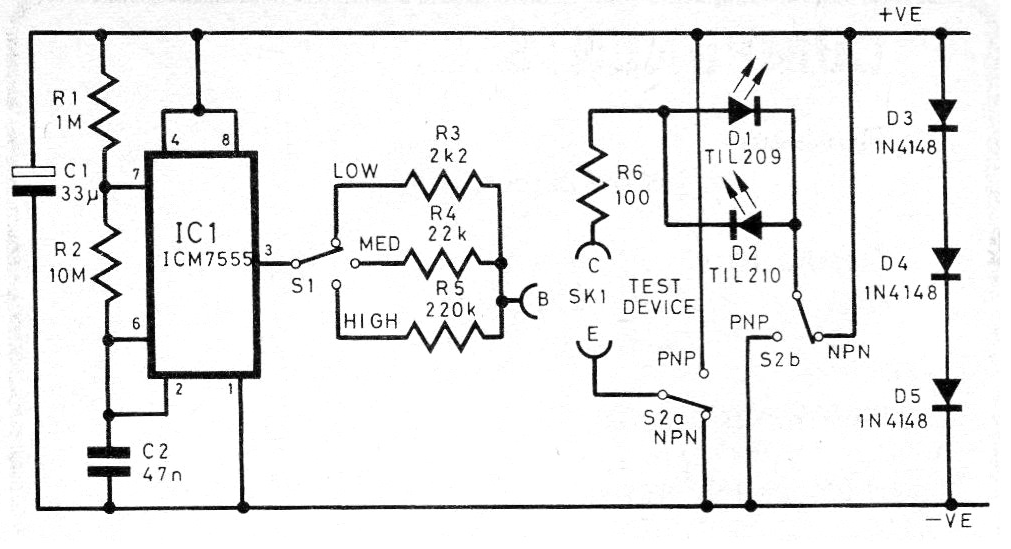

Encontramos este circuito en una revista inglesa de 1983, pero se puede montar fácilmente porque los componentes son comunes. El circuito indica si un transistor está bien o no. Se puede utilizar una celda solar de calculadora.




| Haga click en la imagen para ampliar |
