Indicador de batería (CIR8905S)

Written by: Newton C. Braga
Category: Banco de circuitos

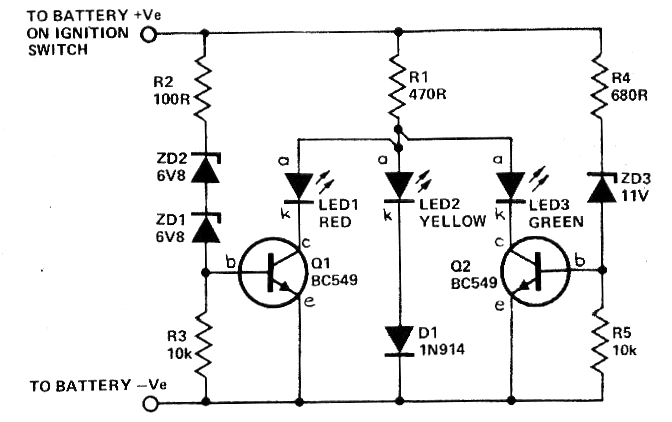

He encontrado este circuito en un artículo de la revista Electronics Today International de julio de 1979. Se trata de una configuración que puede ser elaborada en diversas configuraciones similares, muchas de las cuales ya exploramos en nuestros artículos. Esta configuración tiene tres LED que se encienden según la carga de una batería de q12 V. El circuito es muy simple y todos los componentes son actuales. El LED rojo se enciende con tensiones por debajo de 11,6 V indicando la falta de carga. Con tensiones entre 11,7 y 4,2 V enciende el verde, indicando la carga normal y con tensiones por encima de 14,2 V tenemos el LED rojo encendiendo indicando sobrecarga, lo que puede indicar problemas con el regulador de tensión del vehículo.




| Haga click en la imagen para ampliar |
