Protector contra sobretensión (CIR8636S)

Written by: Newton C. Braga
Category: Banco de circuitos

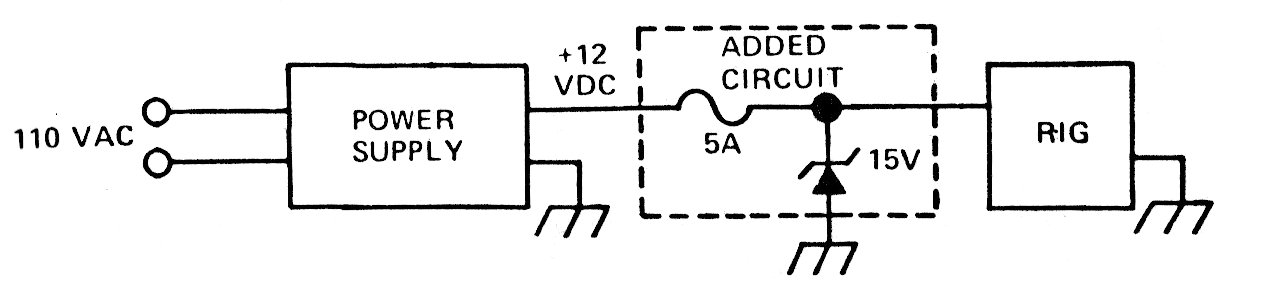

    Este circuito se puede utilizar con fuentes de 5 a 15 V y el diodo zener debe elegirse de acuerdo con la tensión de disparo del protector. El circuito quema el fusible cuando la tensión sobrepasa el valor zener. El zener debe ser de al menos 5 W.




| Haga click en la imagen para ampliar |
