Alarma móvil con SCR (CIR8638S)

Written by: Newton C. Braga
Category: Banco de circuitos

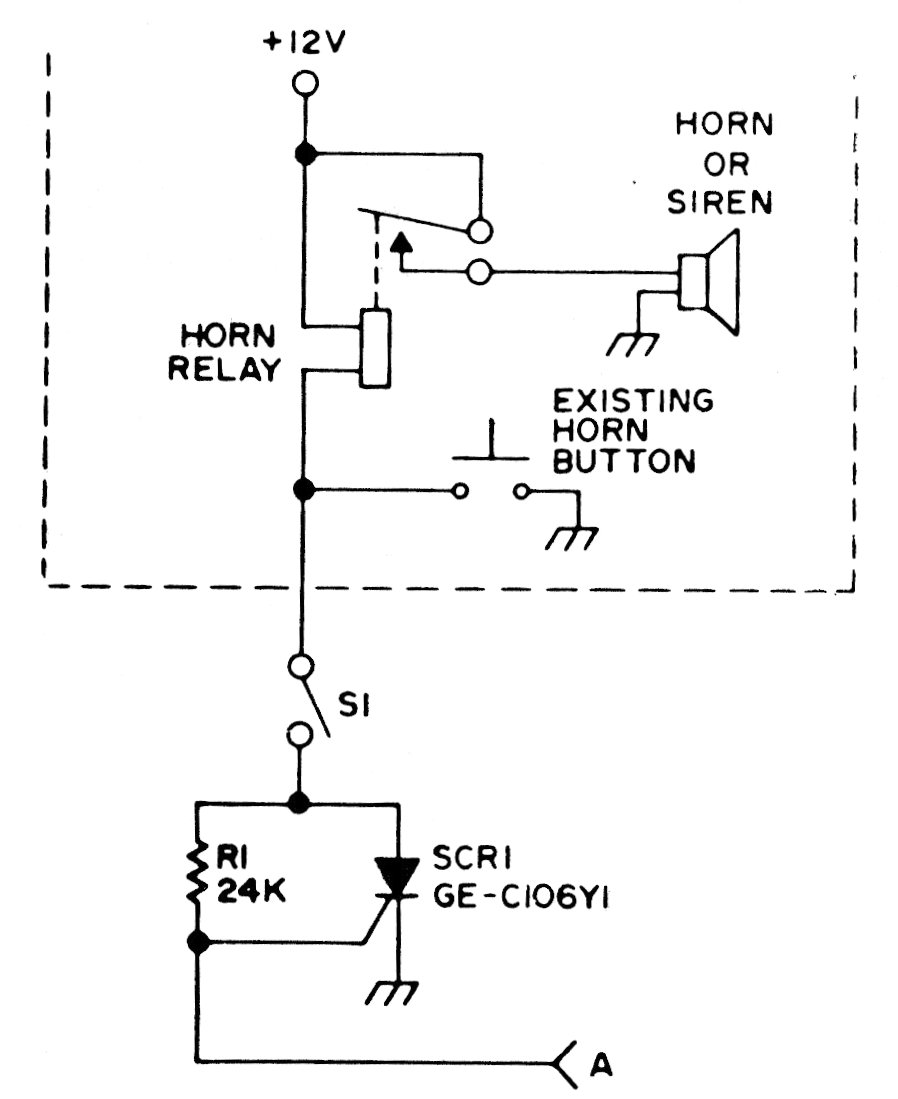

     Este circuito fue encontrado en una documentación de 1975. El SCR puede ser de cualquier tipo y en este caso tenemos el accionamiento de la bocina. El relé debe ser de tipo de 12 V con alta corriente de contacto.




| Haga click en la imagen para ampliar |
