Fader (CIR8084S)

Written by: Newton C. Braga
Category: Banco de circuitos

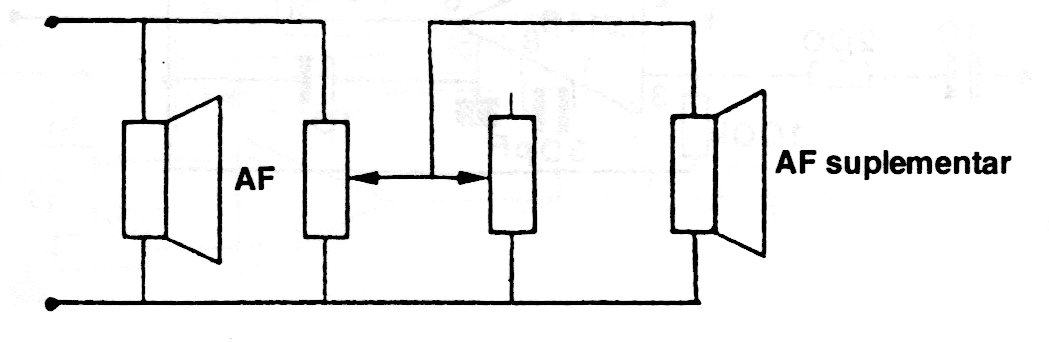

    Este circuito controla el paso de la señal de un altavoz a otro. Los potenciómetros deben ser de alambre de 50 a 100 ohms con disipación de acuerdo con la potencia del sistema de sonido.




| Haga click en la imagen para ampliar |
