Disparador de Schmitt con 3 Transistores (CIR7532S)

Written by: Newton C. Braga
Category: Banco de circuitos

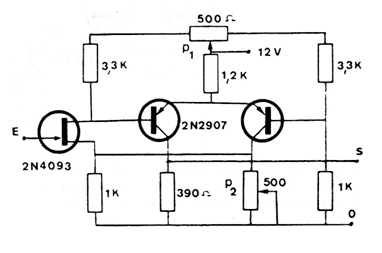

    Este circuito utiliza un JFET en la entrada y dos transistores bipolares de uso general. El circuito es de una documentación francesa de los años 80. Tenemos en esta configuración un ajuste del punto de disparo.
