Relé de potencia NF (CIR7643S)

Written by: Newton C. Braga
Category: Banco de circuitos

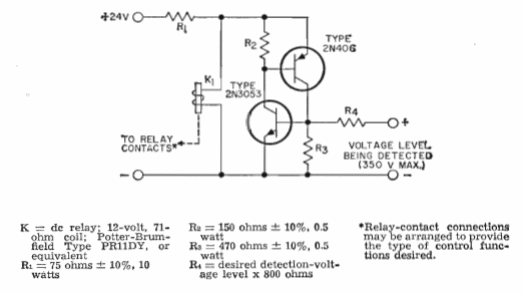

     Esta etapa de potencia para accionamiento de relé fue encontrada en el manual de transistores de la RCA de 1964. El circuito es del tipo NF y los transistores admiten equivalentes. R4 depende de la tensión de accionamiento.
