Transmisor de infrarrojos modulado con MOSFET (CIR7884S)

Written by: Newton C. Braga
Category: Banco de circuitos

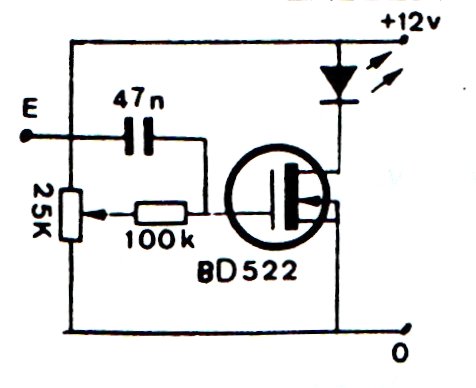

    Este circuito se puede utilizar en un enlace de audio a través de infrarrojos. El LED emisor debe ser dotado de recursos ópticos para obtener mayor directividad y con ello alcance. El LED es del tipo de alta potencia, siendo recomendado el uso de un resistor limitador de corriente. El receptor está en CIR7885S.
