Alarma Con Sensor de Interrupción (CIR7301S)

Written by: Newton C. Braga
Category: Banco de circuitos

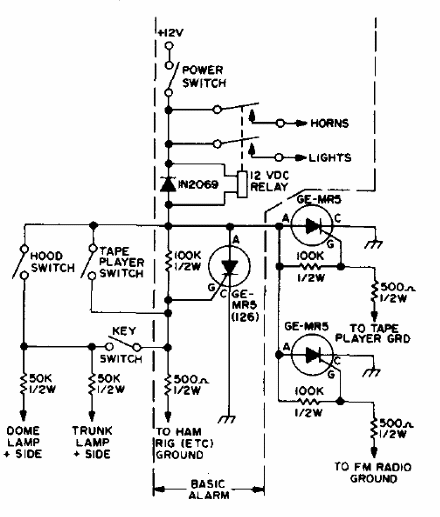

    Este circuito se dispara cuando se interrumpen los sensores. Encontramos este circuito en una documentación americana de 1974. El circuito está indicado en la protección de aparatos de sonido automotriz. Los SCR pueden ser del tipo TIC106.
