Supresor de ruido de conmutación (CIR7338S)

Written by: Newton C. Braga
Category: Banco de circuitos

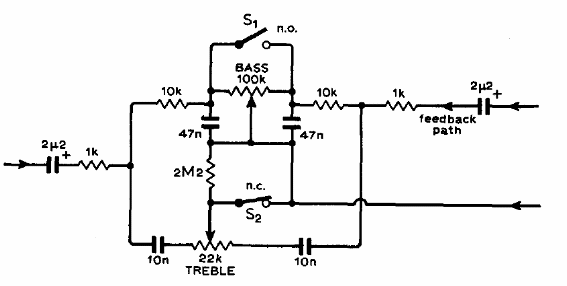

    La finalidad de este circuito, encontrado en una publicación de 1975, es suprimir el ruido que ocurre en la conmutación de canales o de funciones de un amplificador de audio. El circuito es pasivo que incluye un control de tono.
