Convertidor Tensión en Frecuencia (CIR7378S)

Written by: Newton C. Braga
Category: Banco de circuitos

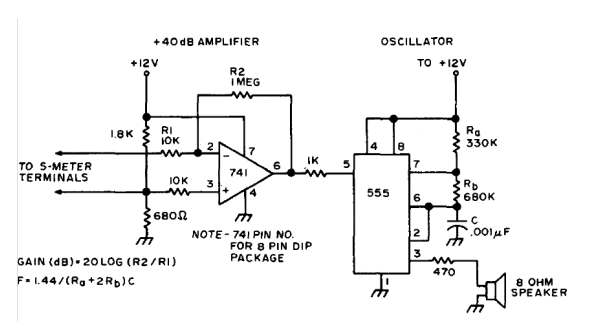

    Esta configuración fue encontrada en una publicación para radioaficionados de 1979. Los dos circuitos integrados son comunes aún hoy y el altavoz puede ser reemplazado por un transductor piezoeléctrico sin la necesidad del resistor de 470 ohms.
