Oscilador CMOS a Cristal (CIR7198S)

Written by: Newton C. Braga
Category: Banco de circuitos

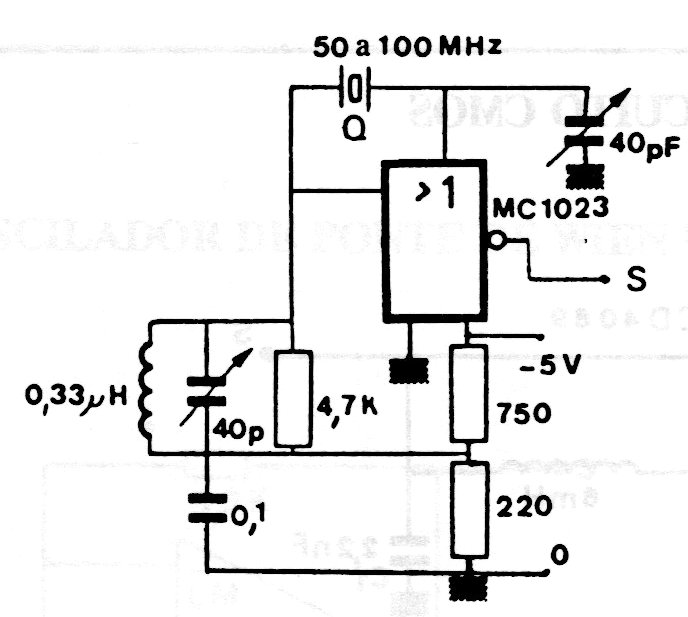

     Con el circuito integrado original que es un puerto CMOS, este oscilador alcanza una frecuencia de 100 MHz. La alimentación se realiza por una tensión de 5 V. Los pines de conexión deben ser localizados en Internet ya que no se dan en el original.
