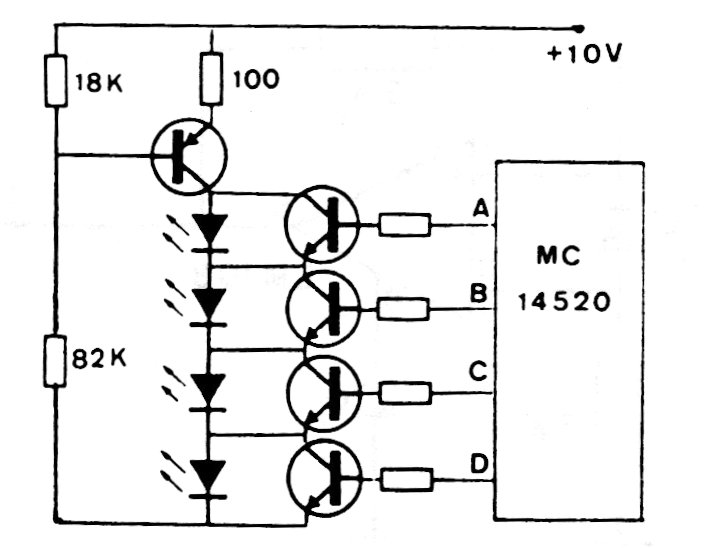

Escala de LED de bajo consumo (CIR7241S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito es de una documentación europea antigua. El circuito integrado utilizado ya no es común en la actualidad. La alimentación debe realizarse con 10 V y el transistor PNP es de uso general y los NPN también.
