Convertidor diferencial en valor absoluto (CIR7262S)

Written by: Newton C. Braga
Category: Banco de circuitos

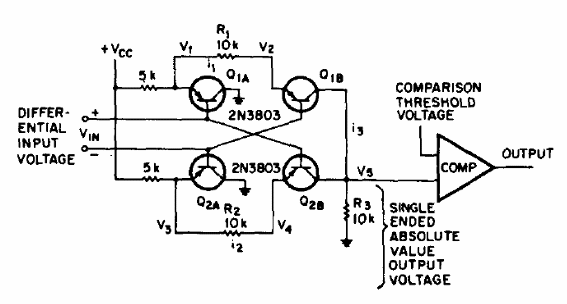

    Los transistores de este circuito encontrado en una documentación de 1971 pueden ser los BC558 y el comparador puede ser el LM339. El circuito convierte una tensión diferencial de entrada en una salida de valor absoluto correspondiente.
