Clock con Back Up de 60 Hz 555 (CIR7287S)

Written by: Newton C. Braga
Category: Banco de circuitos

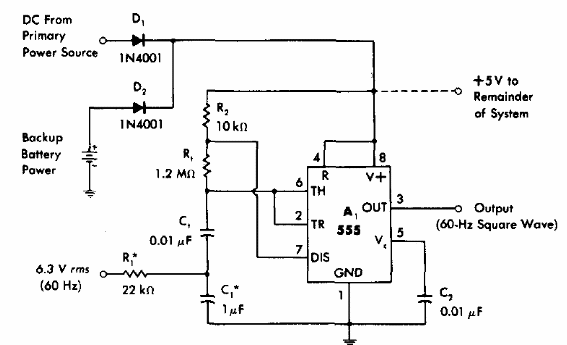

       En el manual de 1977. La señal de clock se obtiene del secundario de un pequeño transformador de 6 a 9 V. Cuando la energía falta, el oscilador entra en acción alimentado por la batería, produciendo una señal de 60 Hz. de R1 y R2.
