Amplificador de audífono (CIR3657S)

Written by: Newton C. Braga
Category: Banco de circuitos

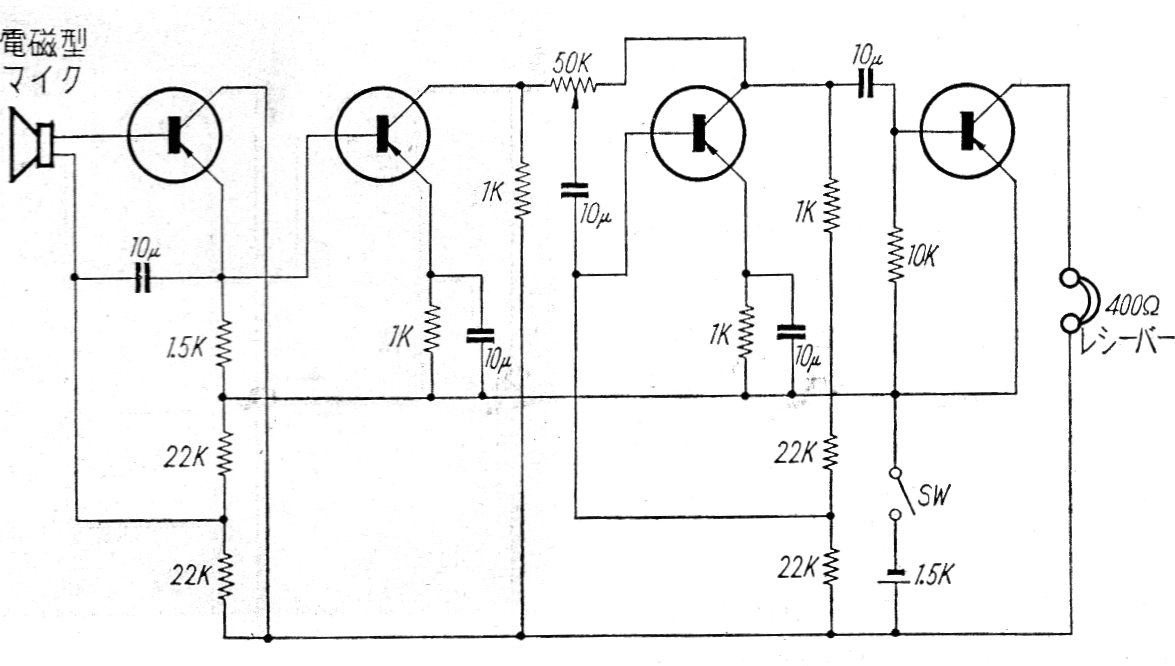

Este circuito, que se encuentra en una publicación japonesa de la década de 1960, utiliza transistores de germanio como el OC71 y suministra un teléfono de alta impedancia. El micrófono es de baja impedancia y funciona con una sola pila.




| Haga click en la imagen para ampliar |
