Amplificador transistorizado antiguo (CIR3678S)

Written by: Newton C. Braga
Category: Banco de circuitos

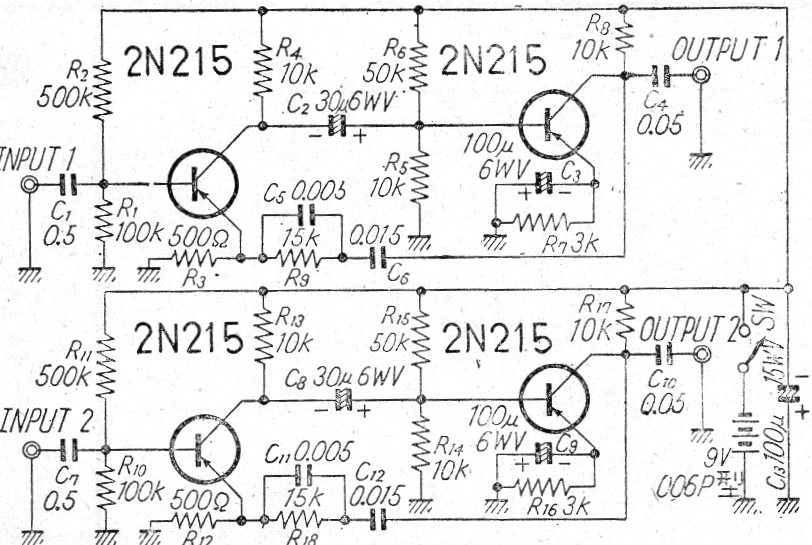

Este circuito estéreo es de documentación japonesa de 1960. El circuito fue diseñado originalmente para funcionar con un amplificador de válvulas, quitando energía de él.
