Amplificador AD161 y ADC162 (CIR7031S)

Written by: Newton C. Braga
Category: Banco de circuitos

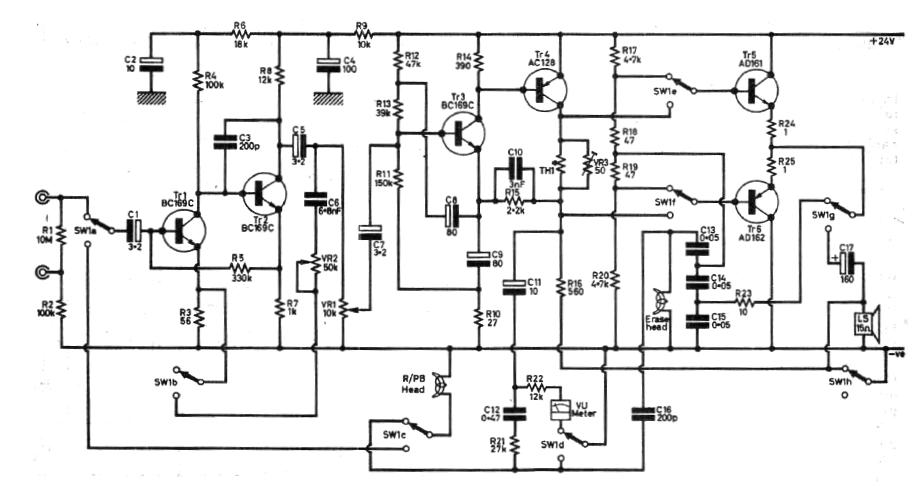

    Este amplificador con transistores de germanio antiguo es de una publicación de 1968. El circuito proporciona algunos watts de potencia con excelente calidad de sonido. Se trata de la configuración utilizada en los equipos comerciales de la época.




| Haga click en la imagen para ampliar |
