Amplificador Para Galvanómetro (CIR7026S)

Written by: Newton C. Braga
Category: Banco de circuitos

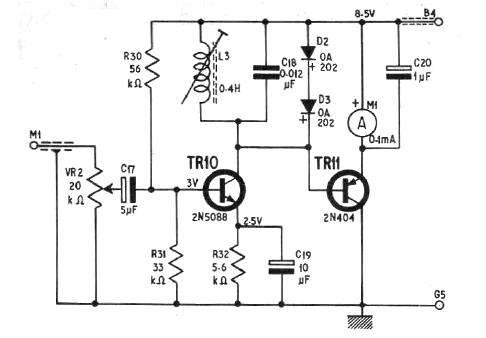

    Este circuito permite utilizar un miliamperímetro en la medida de señales alternadas de baja frecuencia. El circuito es de una publicación inglesa de 1970. Los transistores pueden ser reemplazados por tipos actuales de uso general.
