Shield Receptor Para Alarma Infrarrojo (CIR6714S)

Written by: Newton C. Braga
Category: Banco de circuitos

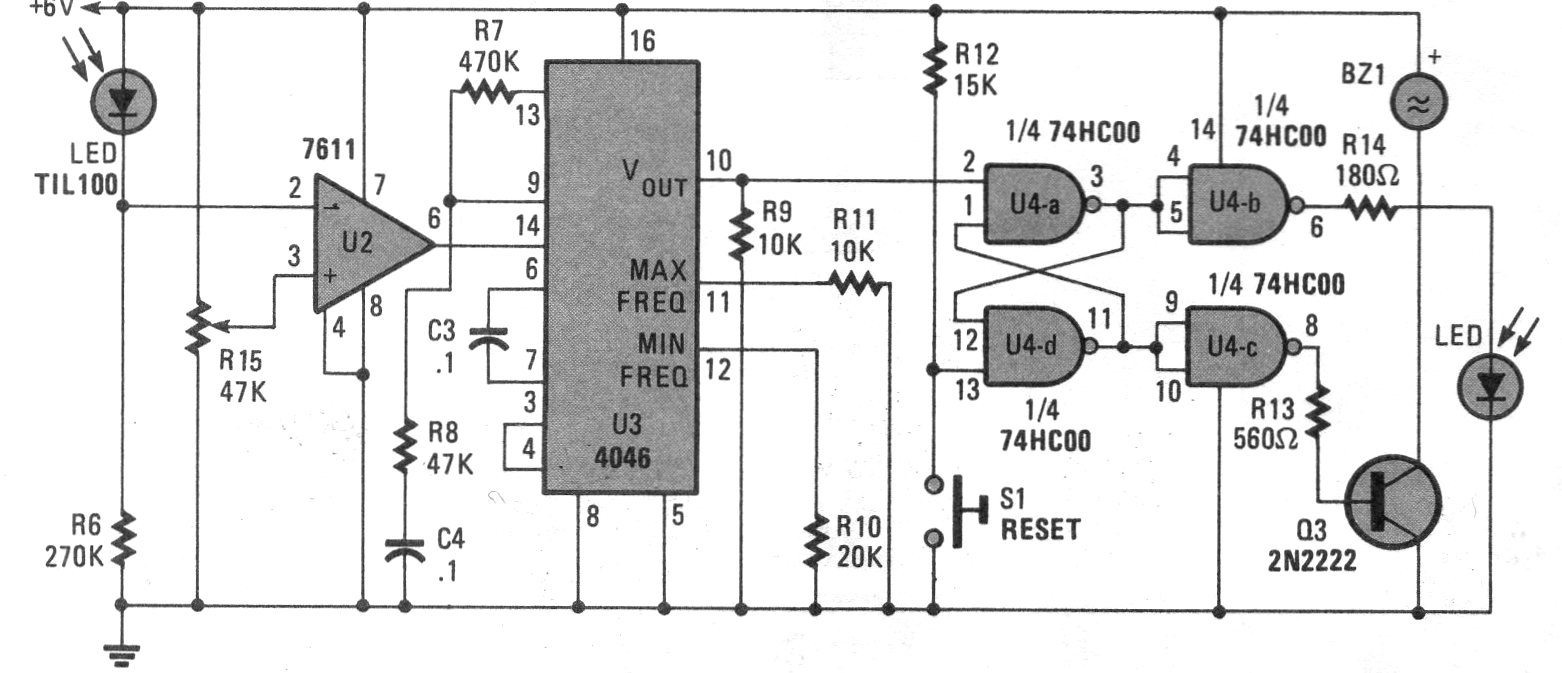

    Este circuito es el receptor para el transmisor del CIR6715S, también encontrado en un Poptronics de los años 90. El amplificador operacional admite equivalente así como el foto-diodo. El buzzer puede sustituirse por un relé de 6 V.




| Haga click en la imagen para ampliar |
