Mini Parpadeante PNP (CIR6383S)

Written by: Newton C. Braga
Category: Banco de circuitos

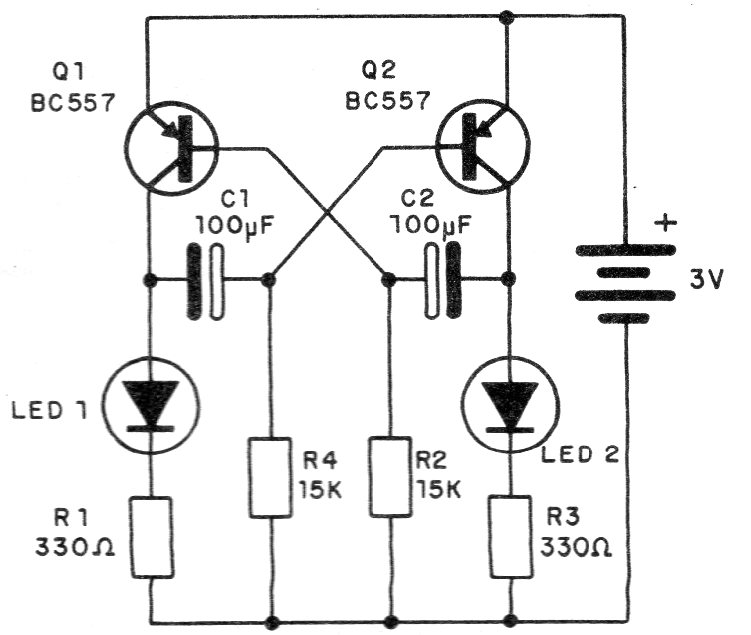

     Este circuito convencional de parpadeante con LEDs tiene la configuración de multivibrador asequible con transistores PNP. La frecuencia es dada por los capacitores que pueden ser alterados. El circuito, en realidad funciona con tensiones de 3 a 9 V y el consumo es bajo.
