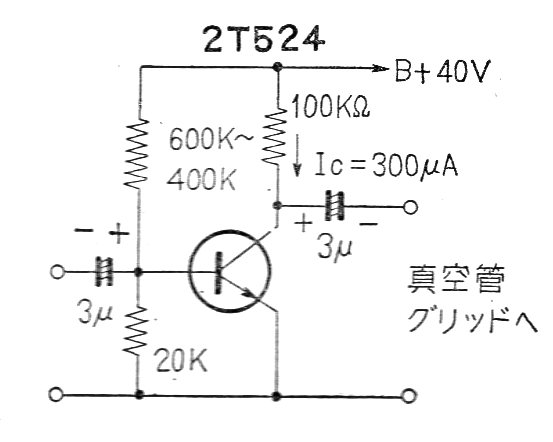

Paso Amplificador con 1 Transistor (CIR5979S)

Written by: Newton C. Braga
Category: Banco de circuitos



      Este circuito es de una documentación de 1967. El transistor usado es de germanio de la época y la tensión de alimentación es alta para el tipo de transistor de la época.
