Fotómetro (CIR5986S)

Written by: Newton C. Braga
Category: Banco de circuitos

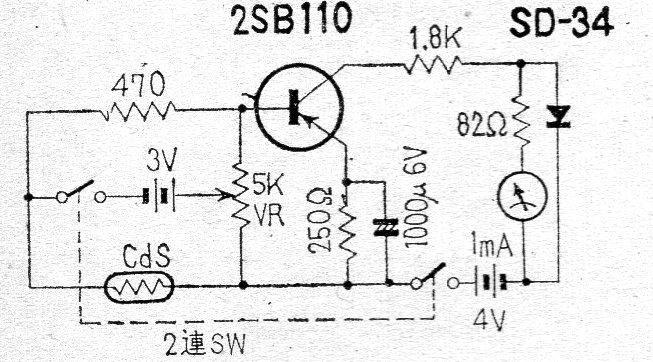

     Este fotómetro usando LDR fue obtenido en una documentación japonesa de 1968. El transistor original es de germanio de la época, pero el circuito puede ser implementado con transistores modernos. El diodo es de uso general.




| Haga click en la imagen para ampliar |
