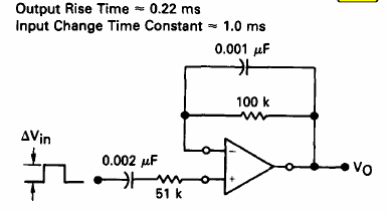

Diferenciador Para Frontal Positiva LM3900 (CIR2151S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito, con amplificador operacional, fue encontrado en el Linear Databook de la Motorola de 1.990. La fuente debe ser simétrica y el funcionamiento puede ser prácticamente de cualquier tipo.
