Pre Con Ecualización NAB (CIR4476S)

Written by: Newton C. Braga
Category: Banco de circuitos

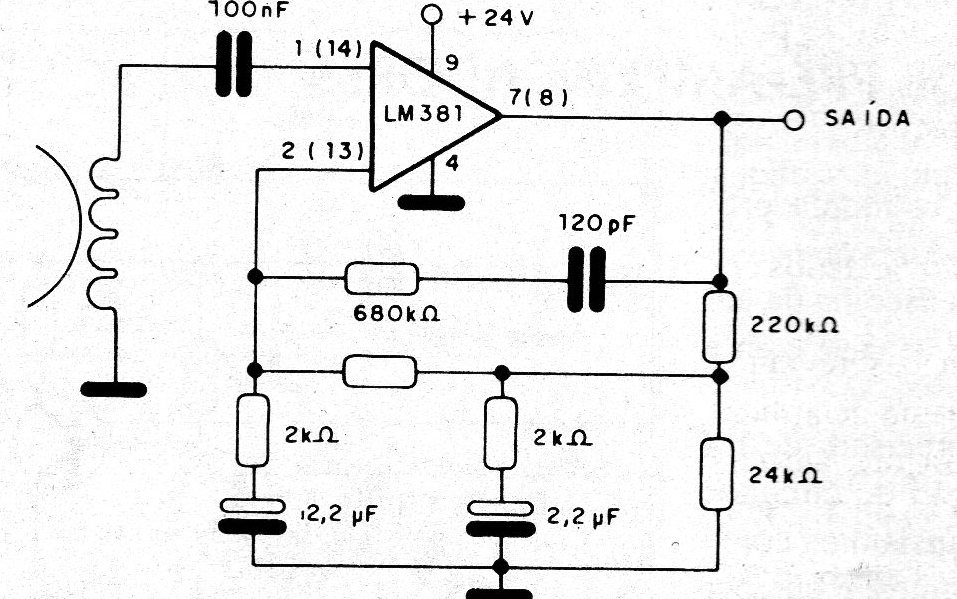

   Este circuito utiliza un amplificador de National Semiconductor, poco común en nuestros días. Los números entre paréntesis son para el segundo canal. El circuito está indicado para antiguos grabadores de cintas de rodillo.




| Haga click en la imagen para ampliar |
