Multiprovador (CIR4080S )

Written by: Newton C. Braga
Category: Banco de circuitos

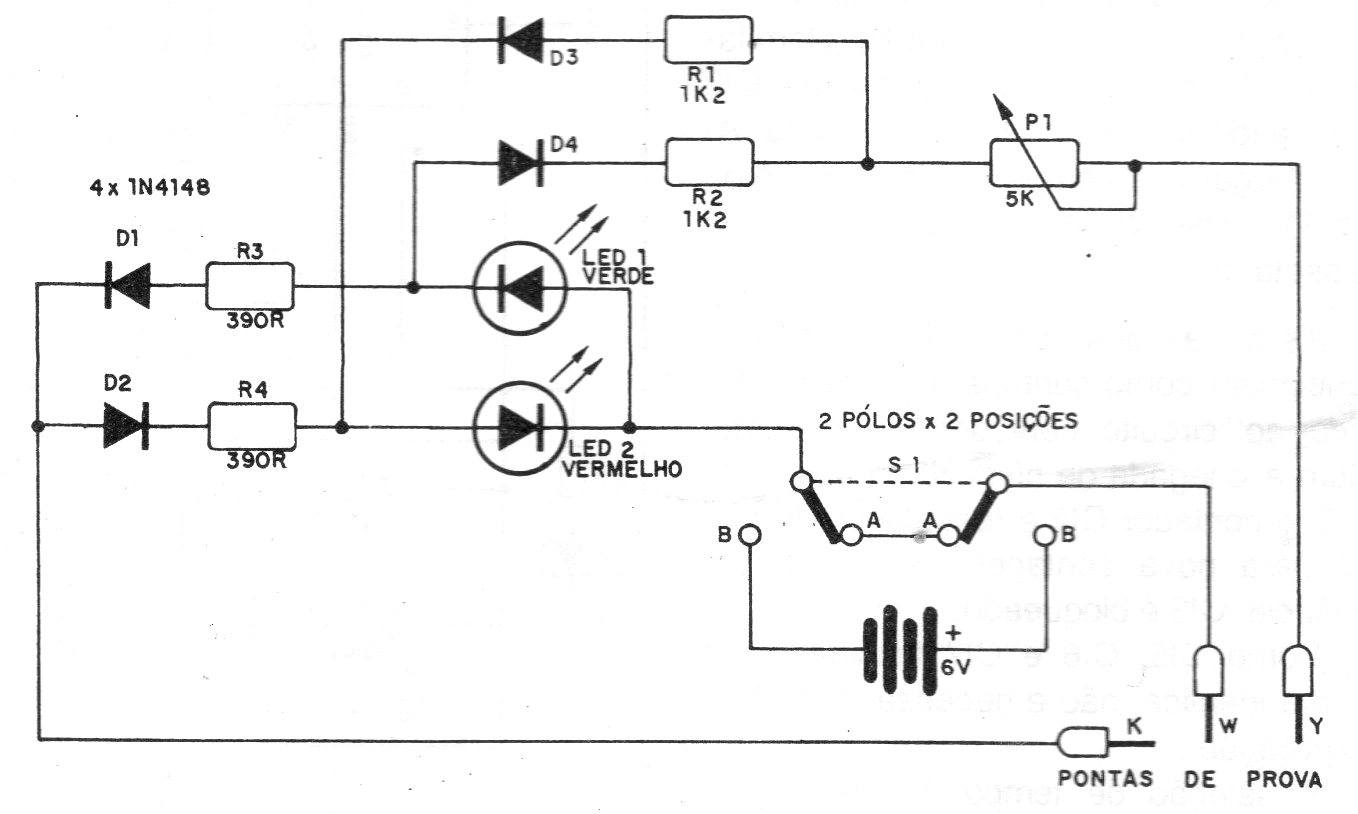

Este circuito puede servir para prueba de continuidad o de semiconductores. Encontramos la configuración en una documentación de 1987. P1 ajusta las corrientes para la prueba de transistores, conforme la ganancia. La alimentación se realiza a partir de pilas comunes.
