Inyector de Señales (CIR5423S)

Written by: Newton C. Braga
Category: Banco de circuitos

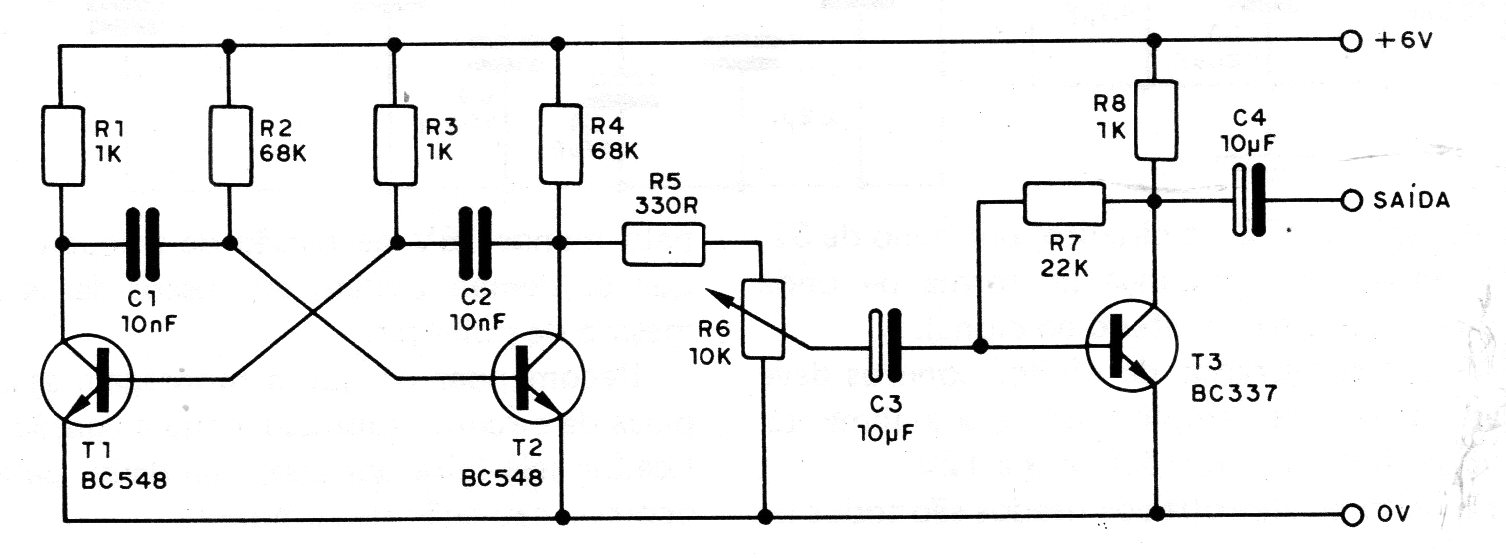

     Este circuito convencional de inyector con multivibrador de dos transistores, más una etapa de amplificación puede ser muy útil en la prueba de equipos de audio y RF. El circuito es alimentado por 4 pilas y tiene un control de intensidad.




| Haga click en la imagen para ampliar |
