aTransformador Clase B sin transformador (CIR11685S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito se encontró en una documentación de la década de 1980 que usaba transistores de silicio de la época. El circuito proporciona unos pocos watts y los transistores de salida pueden ser los BD135 y BD136.

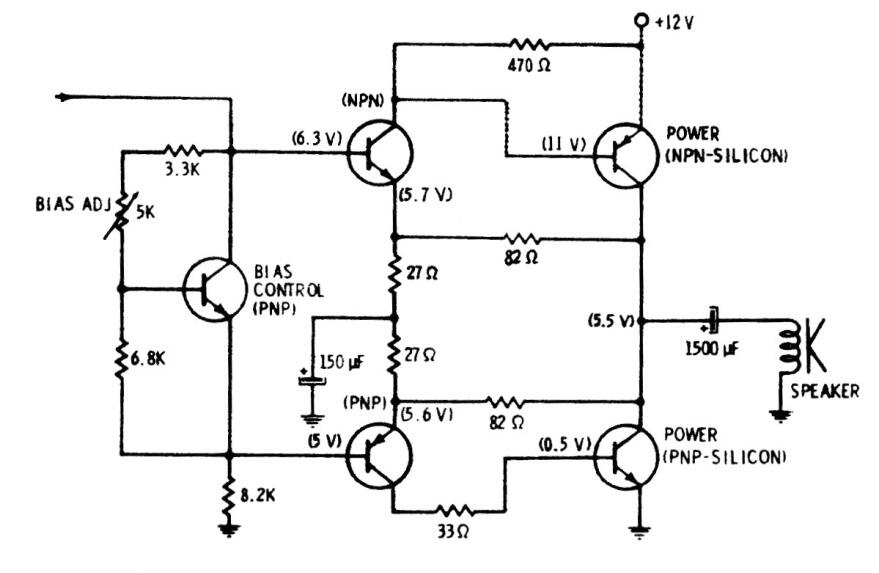

Transformador Clase B sin transformador
Transformador Clase B sin transformador | Haga click en la imagen para ampliar |
