Lanza Monedas (CIR9600S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito fue hallado en una revista inglesa de 1975, pero se puede montar fácilmente porque todos los componentes son comunes. La fuente no necesita ser simétrica y el LED es común.

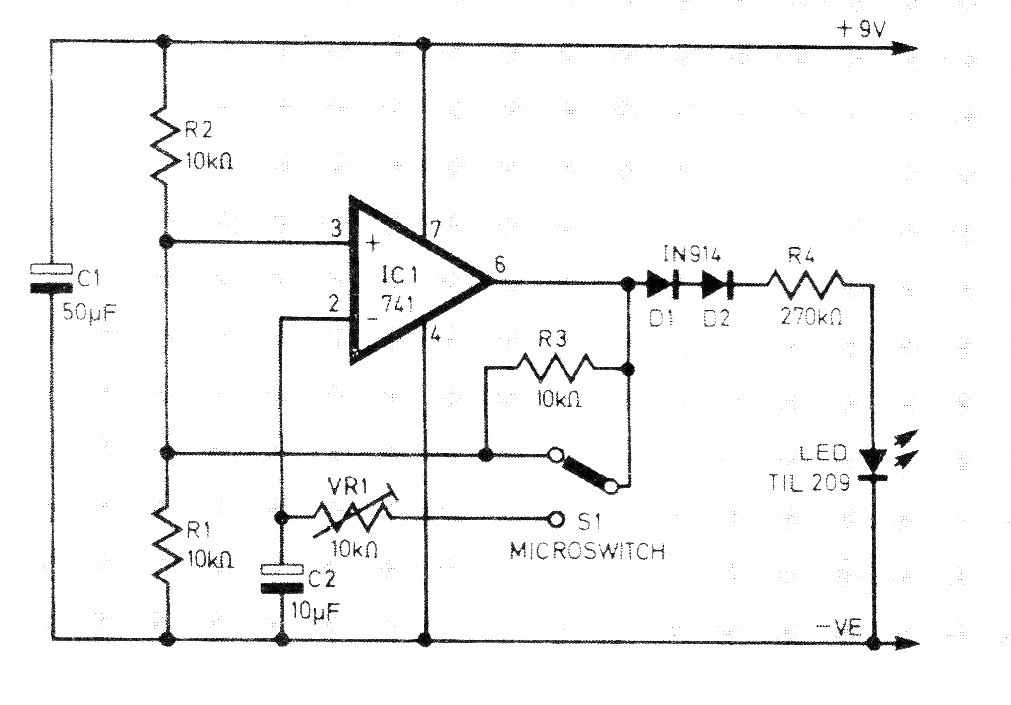

Lanza Monedas
Lanza Monedas | Haga click en la imagen para ampliar |
