LED Alimentado por 1,5 V (CIR9628S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito fue encontrado en una revista inglesa de 1983, pero se puede montar con los BC558. Sin embargo, el circuito tendrá mayor rendimiento con transistores PNP de germanio. El circuito permite alimentar LEDs comunes con una sola pila de 1,5 V.



LED Alimentado por 1,5 V

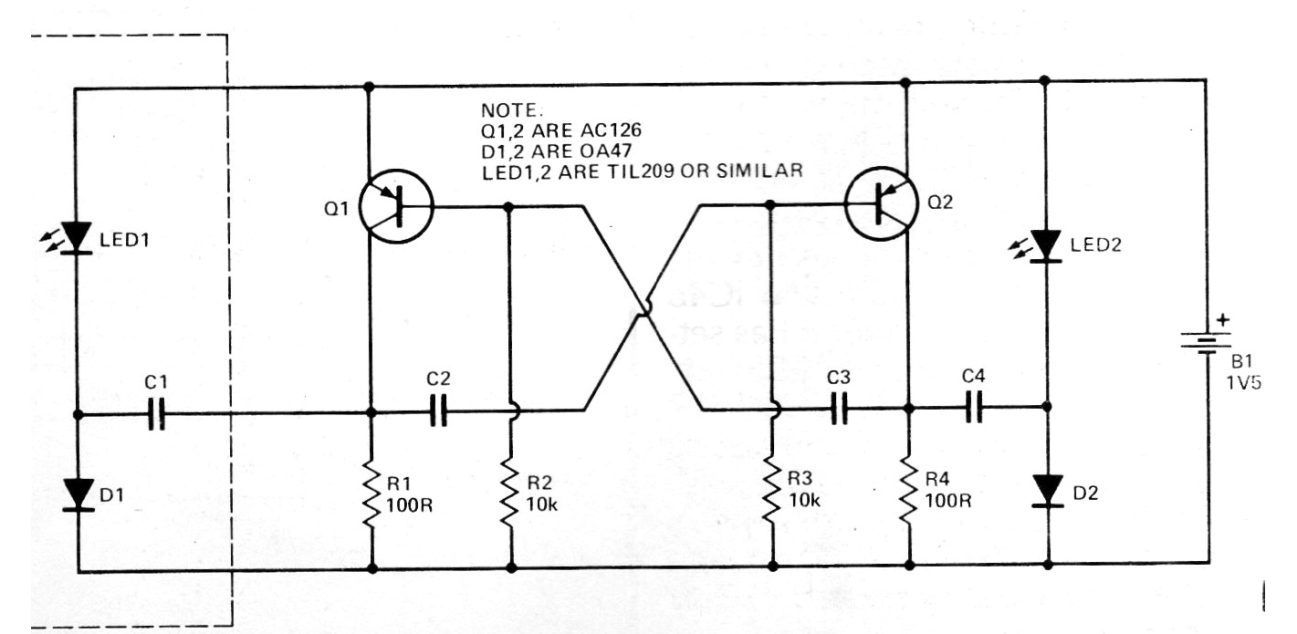

LED Alimentado por 1,5 V | Haga click en la imagen para ampliar |
