Shield de interfaz CMOS (CIR8035S)

Written by: Newton C. Braga
Category: Banco de circuitos

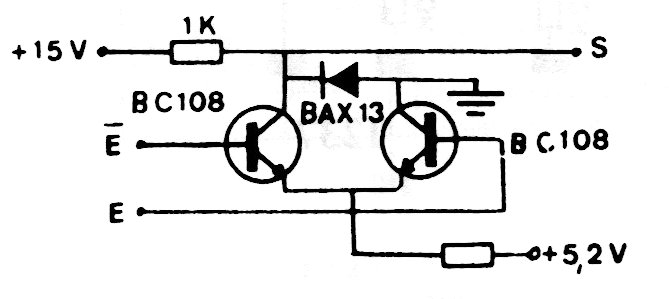

    Los transistores de este circuito pueden ser los BC548 y también funciona como función lógica. La tensión de alimentación depende del circuito a ser excitado.




| Haga click en la imagen para ampliar |
