Alarma de paso (CIR3619S)

Written by: Newton C. Braga
Category: Banco de circuitos

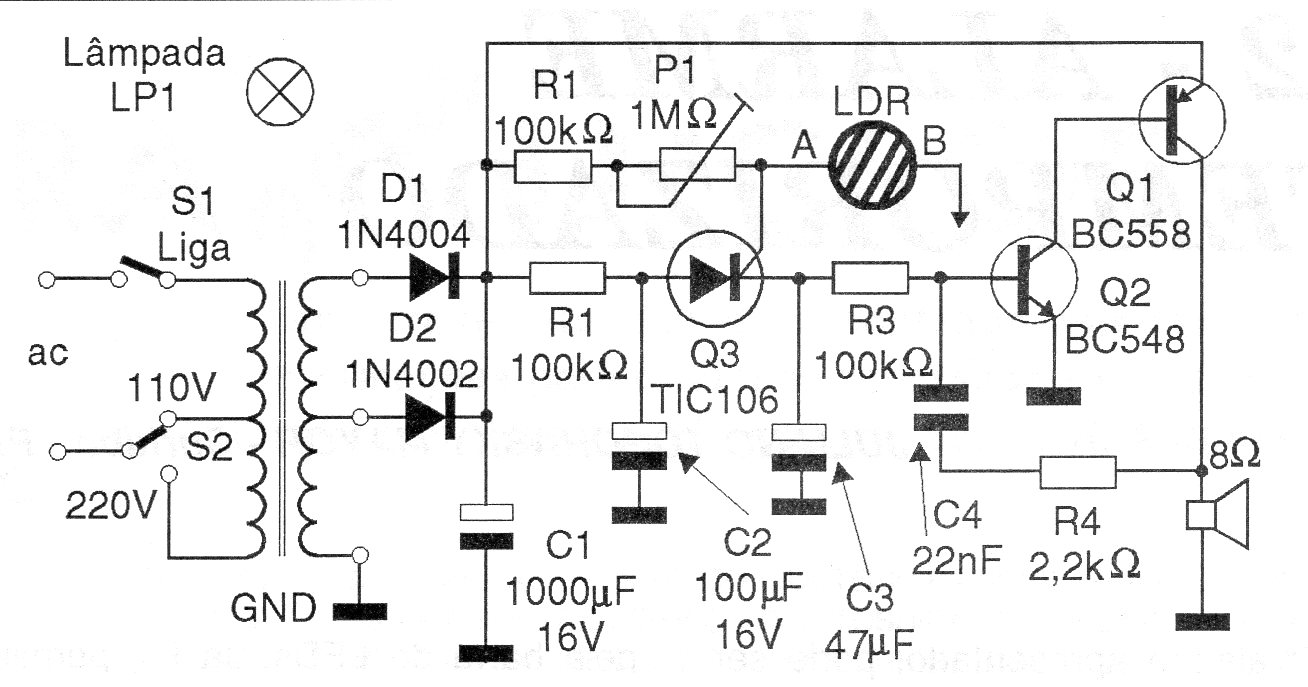

Este sencillo circuito de paso se obtuvo en una documentación antigua, pero aún está actualizado por los componentes que utiliza. El ajuste de sensibilidad se realiza en P1 y la fuente de luz puede ser una lámpara o LED. Un sistema óptico con lentes mejora la sensibilidad y directividad del circuito.
